...Bits for Sho Bud volume pedal....or drawings/dimensions!!

[tonewheelkev]

Hi Folks

...thought I'd open this up to you lot...after a pulley for a Sho Bud Volume pedal that I recently acquired. The pulley is missing...so if someone out there has the same, and could supply a picture/drawing and some measurements, ....then perhaps I might 'knock up' the same!!??

Also missing is the 'guide'...that 'guides' (hehehe!!) the cord from the pulley to the spring at the heel end of the pedal.

Phew!!!!....hope that makes sense...

Perhaps someone might have these bits knocking around... ...unlikely I know!!

[Will C]

Kev,

I modified my Sho-Bud pulley to give greater range of control, so I have it to hand and could duplicate it for you without difficulty if you can't locate one. Could probably do the guide as well. Let me know.

Will C

[tonewheelkev]

Thanks for that Will....PM'd

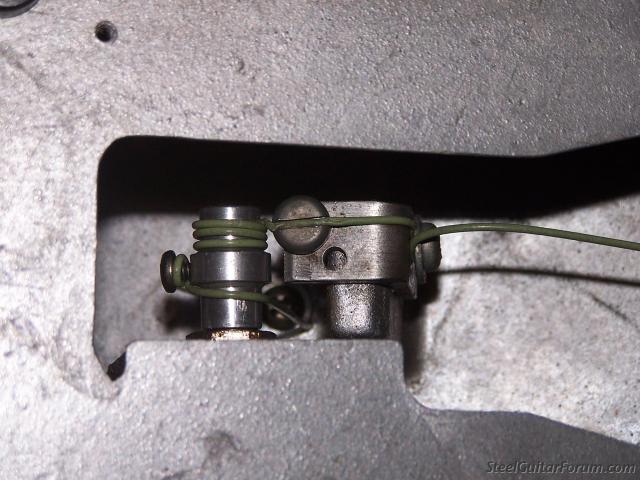

Found a pic on t'net!!!

So...the cord guide bit....bolts through the casting. A 'pan' headed bolt acts as the cord guide.

....Is that it????

[Dennis Earney]

Have used a Sho Bud pedal for 30 years.Replaced the origional cord with dry fly fishing line,non slip,strong and doesn't stretch.

[Will C]

Thanks Dennis, good to know. I made a pulley for Kev, if anyone else out there needs one give me a shout.

[tonewheelkev]

...... I made a pulley for Kev, ........

....and an excellent job it was too.....Thanks Will!!
