Hi All.
Would anyone have a full wiring diagram for a ZB custom S10? I've been restoring my recently acquired model by reinstalling the original multi-tapped pickup but in the process some of the original wiring fell apart. In particular, there's a toggle switch beside the pickup selector that does nothing right now and I've no idea how to rewire it.
Cheers,
Neil.
ZB Custom S10 wiring
3 posts
• Page 1 of 1
ZB Custom S10 wiring
by neilmurphy65 » Wed Nov 02, 2022 11:02 am
ZB Custom S10 3x4 / Gretsch G5700 lap steel with Certano benders
- neilmurphy65
- New Member
- Posts: 4
- Joined: Wed Aug 31, 2022 1:02 pm
Re: ZB Custom S10 wiring
by Jim Pritchard » Wed Nov 02, 2022 11:53 am
Hi Neil,

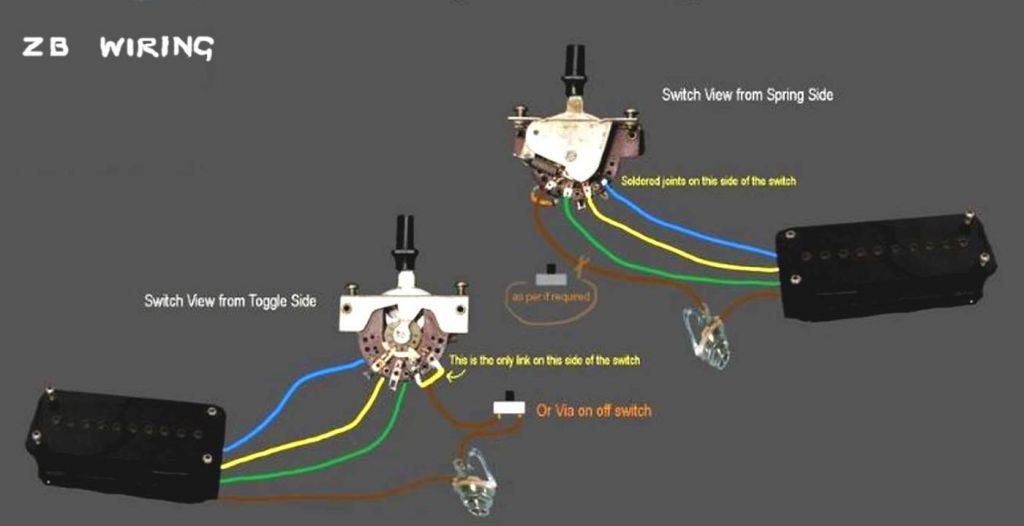

here you go and good luck, ZB S10 wiring diagram:-
here you go and good luck, ZB S10 wiring diagram:-
- Attachments
-
ZB Custom S10 3+4, DD3 Digi delay, ZB vol. pedal. Peavey Nashville 400
- Jim Pritchard
- Seasoned Member
- Posts: 248
- Joined: Wed Jul 07, 2010 4:20 pm
- Location: Wimborne, Dorset. UK
- Real Name: Jim Pritchard
Re: ZB Custom S10 wiring
by neilmurphy65 » Wed Nov 02, 2022 11:59 am
Thanks jim.
So, it looks like the toggle switch is to connect/disconnect a ground wire?
So, it looks like the toggle switch is to connect/disconnect a ground wire?
ZB Custom S10 3x4 / Gretsch G5700 lap steel with Certano benders
- neilmurphy65
- New Member
- Posts: 4
- Joined: Wed Aug 31, 2022 1:02 pm
