Vertical Knee lever extension hack

Postby Hobro » Sun Feb 21, 2021 5:31 pm

I recently bought myself a really nice used GFI.
The guitar however came with standard length legs.
So when I recently fitted a GFI vertical knee lever on the left knee and found that even at the lowest setting it was too high for my munchkin legs to reach!
I googled a few ideas regarding knee lever extensions But nothing was really floating my boat.
Even toyed with the idea of getting some slightly shorter legs but this was going to be too expensive.
So with a little bit of thought I came up with this idea, which requires absolutely no modification to your guitar whatsoever.
It’s a piece of delrin rod, 10 cm long 20 cm diameter with 3 x 10mm coated spring clips.
I’ve been using it for over a week now and it’s rock solid and works like a charm.
I’ve now added some O-rings that fit over the clips which makes the extension even more solid.
It’s also really easy to remove when you need to pack the steel in its case

Total cost around £10.

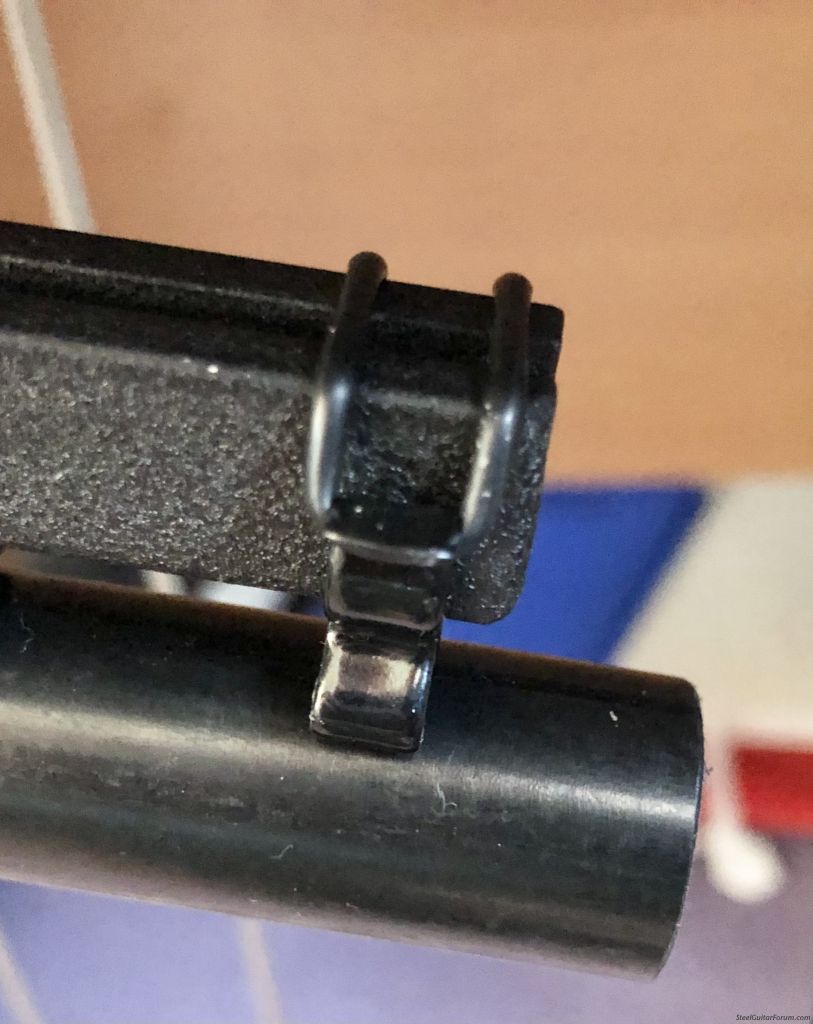

Knee extension 1.jpg

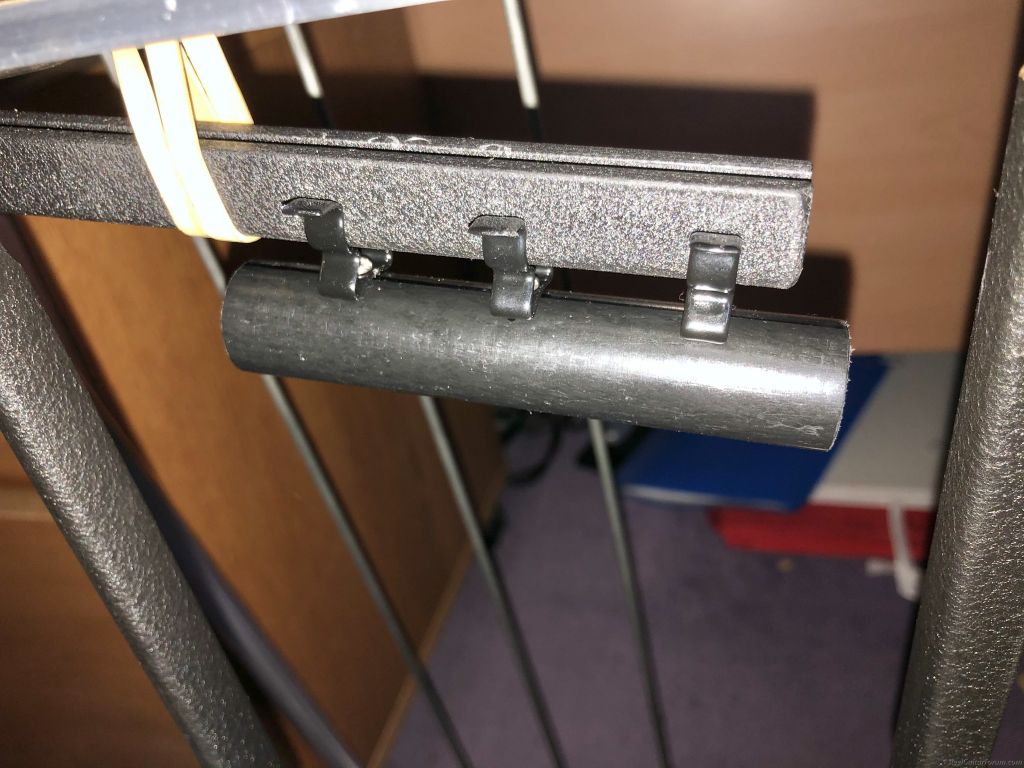

Knee extension 2.jpg

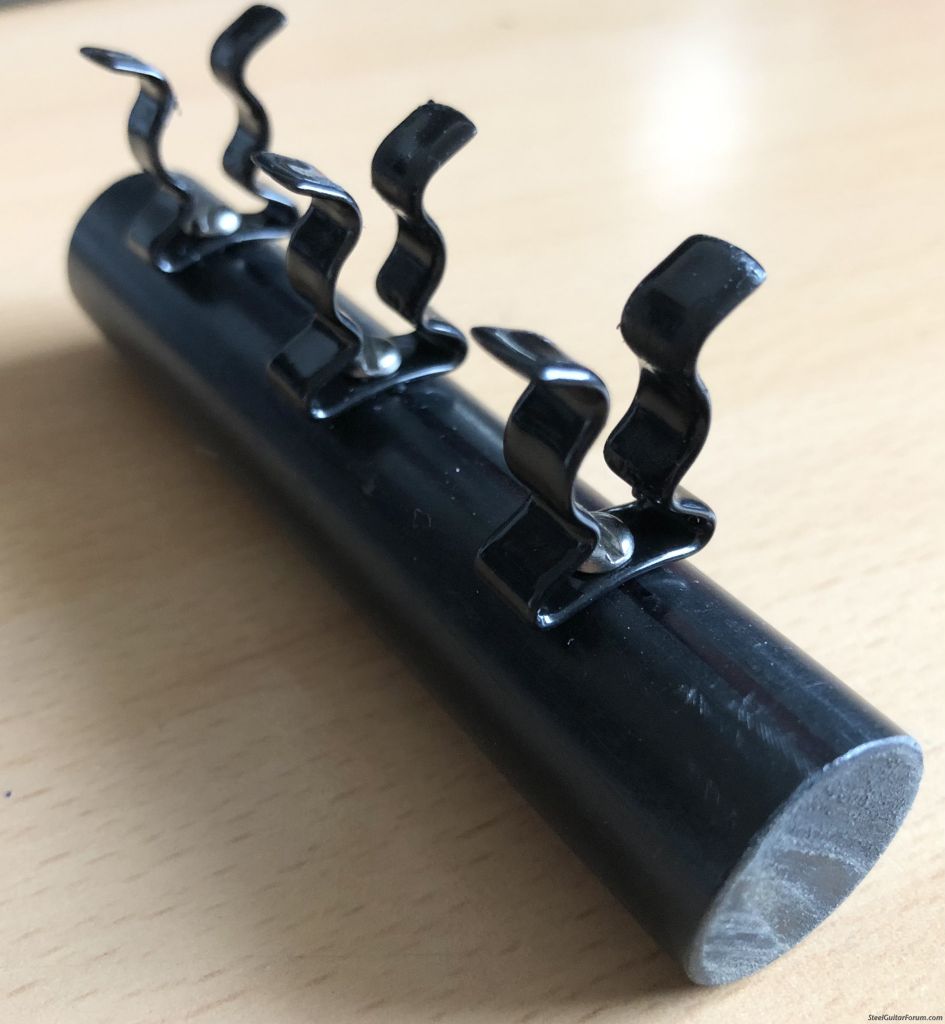

Knee extension 3.jpg
GFI Professional S10 4 x 5 pedal steel
Peavey Power-slide lap Steel
Dobro D60
Guild D6
Fender USA Telecaster
Fender USA Pro II Stratocaster
Fender USA Acoustasonic Telecaster
Danelectro Long Horn
Squire VI Six String Bass
Quilter Aviator Cub 112
Hobro
Member
Member

Posts: 110
Joined: Wed Jun 22, 2011 7:41 pm
Location: Horbury, West Yorkshire, UK
Real Name: Tim Howard

Re: Vertical Knee lever extension hack

Postby Danny Mitchell » Sun Feb 21, 2021 7:19 pm

What a great, and tidy, idea Tim :guitar:

I found the same problem with my GFI, and got round it with my Blue Peter approach, velcro and a lump of polystyrene :lol: and the funny thing is, it's worked. Looks atrocious though.
GFI Ultra keyless S10 4+5 Emmon's setup + Sigler, Li'l Izzy, Hilton volume pedal, Roland Cube 80gx, Joyo American Sound Pre-amp, Behringer VD400 Delay Pedal, Peterson Strobo Plus HD and a brace of bars, Ben's, Ezzee-Slide, Pearse, BJS, SIT nickel strings.
User avatar
Danny Mitchell
Dedicated Member
Dedicated Member

Posts: 2210
Joined: Wed Aug 27, 2014 11:15 am

Re: Vertical Knee lever extension hack

Postby TonyT » Wed Mar 03, 2021 11:41 am

This is a pic of a Magnum pro select. Its what I intend to change my vertical knee lever to. I have the same issues of " shortiness "
WBS E9th 10 string custom 3+5. Behringer VD400 Delay. Boss Katana 50, Hilton Active std volume pedal, Ezzee slide bar, dunlop bar.
TonyT
Member
Member

Posts: 133
Joined: Fri Jun 26, 2020 3:28 pm
Location: Hemyock Devon
Real Name: Derek Anthony Truelove
