Lockdown handiwork

[dessa]

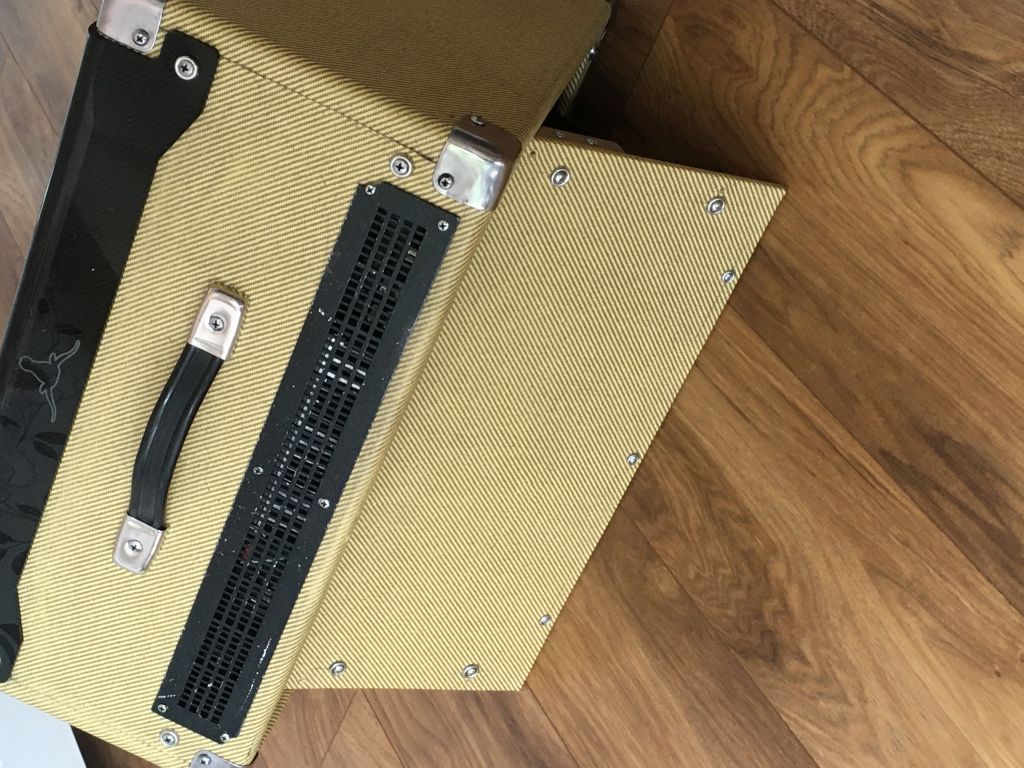

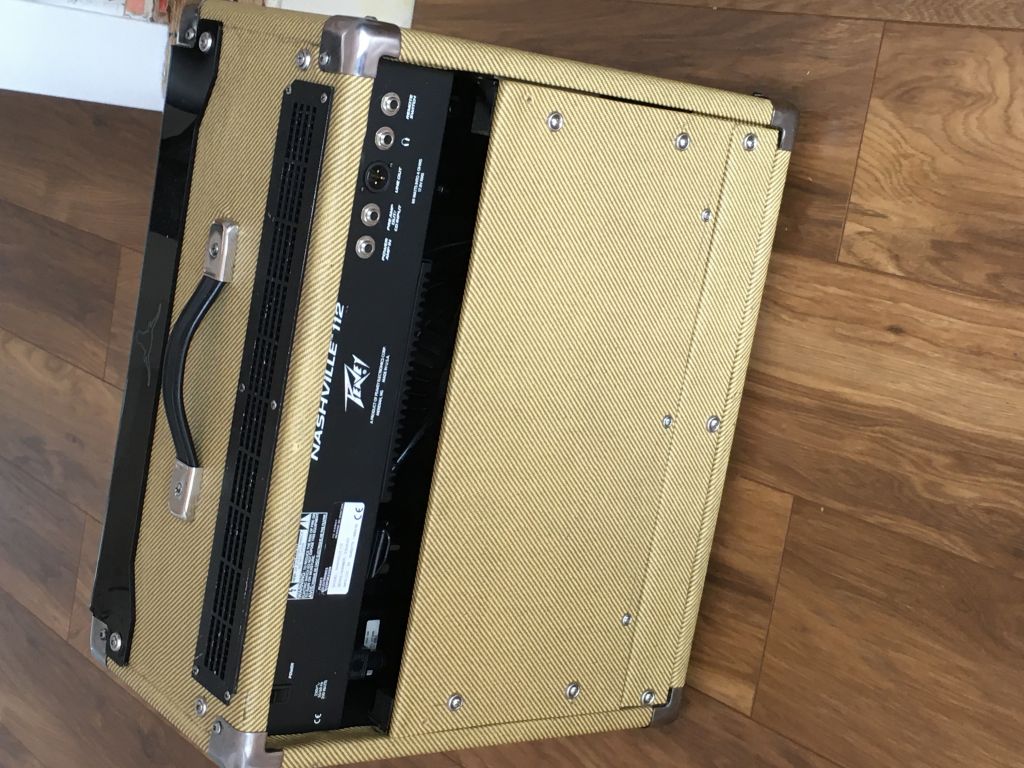

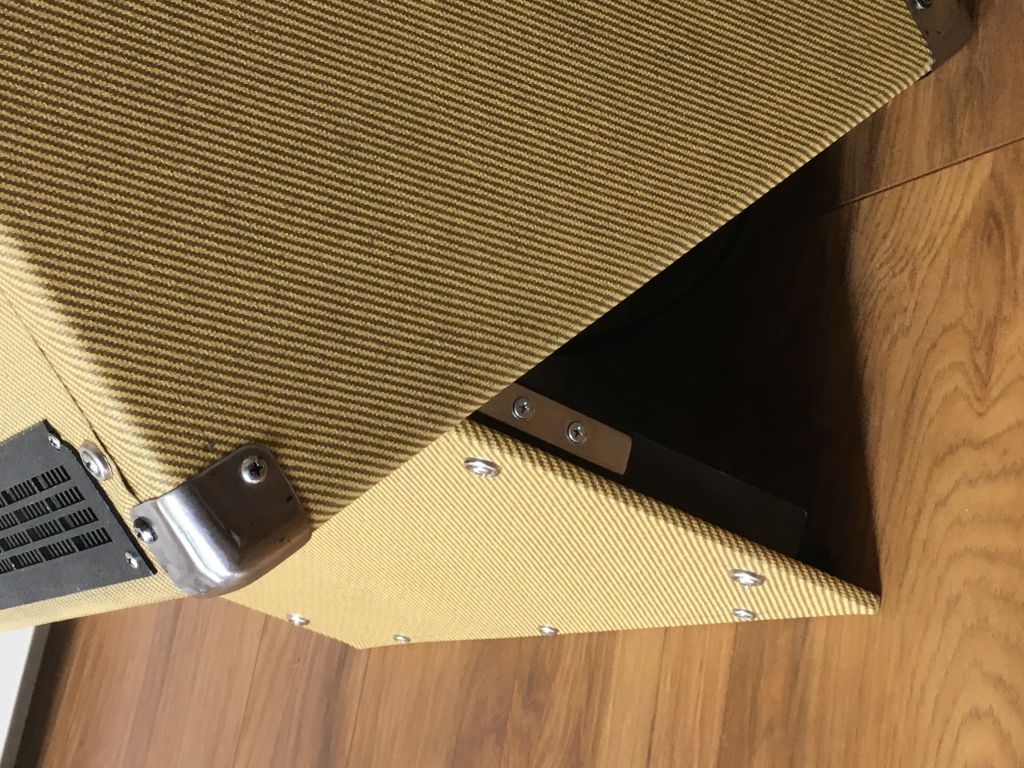

So...like most of us just nowI have time on my hands. I'm always trying to minimise set up time and carrying extra gear so came up with this. I made a new back for my Nashville and fitted it with pivot hinges so now I have one less stand to carry. Yay!!! Stay safe

[JohnDavisStringsHere]

Ooz A clever boy then......? Good job.

[Malcolm]

Excellent idea Derek, now looking at my cabs to see if I can do it..

[Dave Nutt]

Nice job and a great innovation, well done Derek.
Dave.

[simon_f3]

Grand Job, Derek!! Amps should come with a hinged back panel as standard - certainly a more elegant solution that the additional stand or the Fender 'tilt-back' legs, in my opinion.

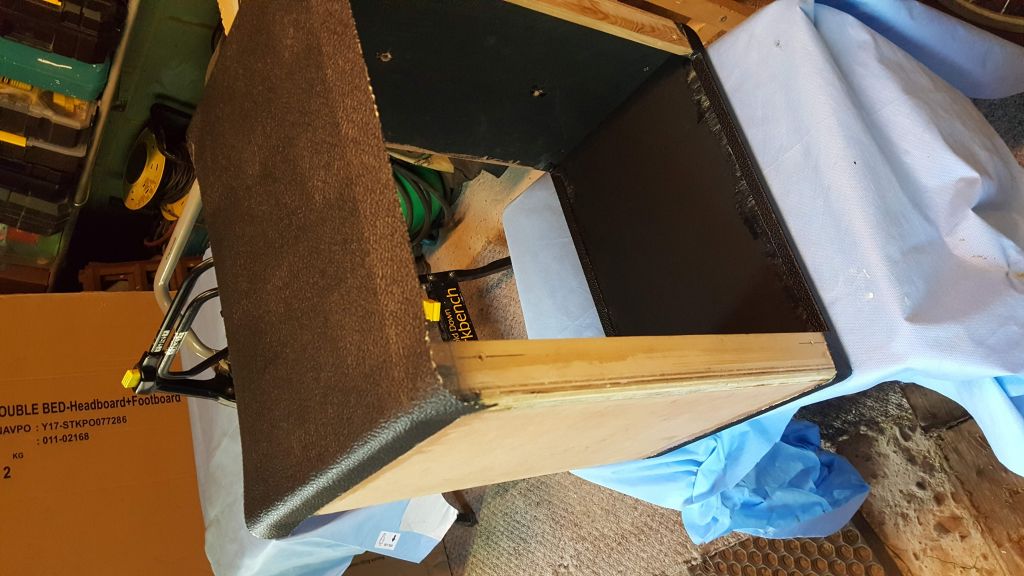

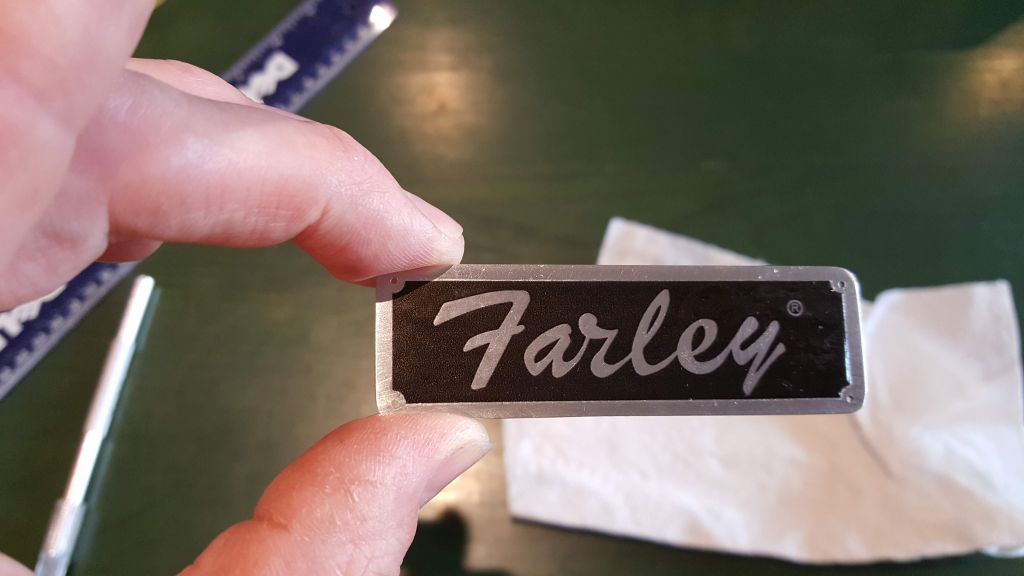

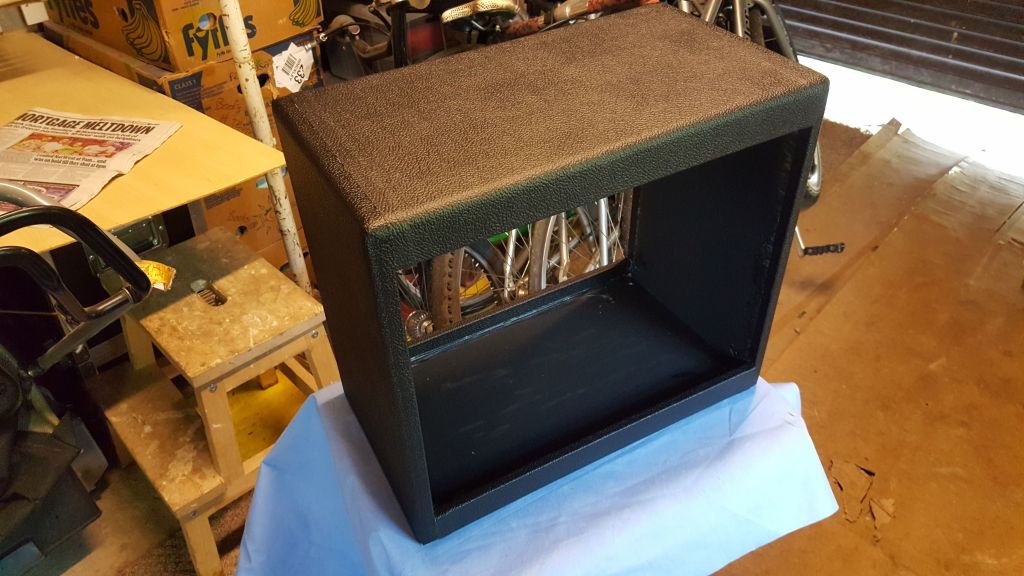

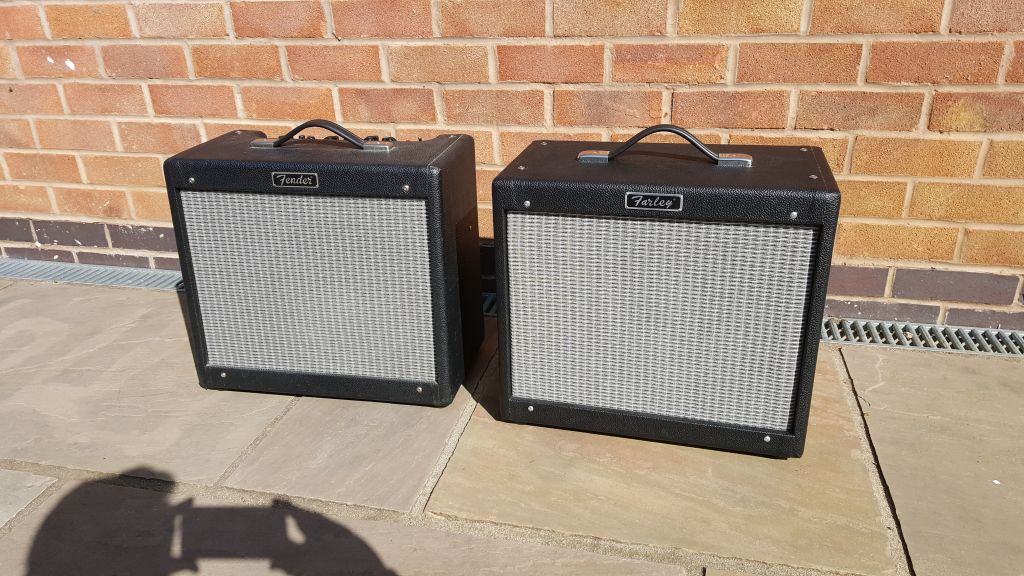

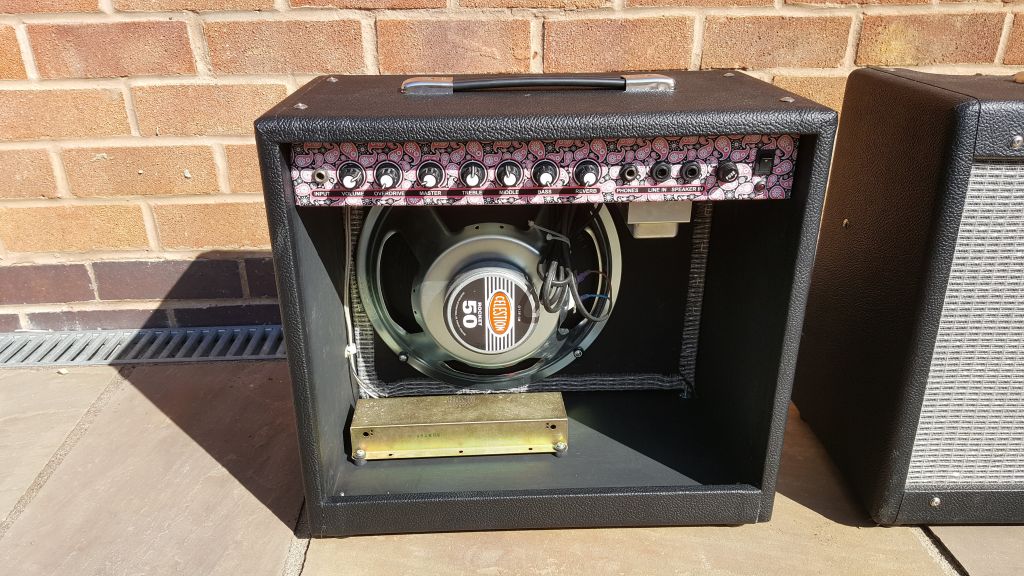

I spent a bit of time in the lockdown making a few mods to my Blues Jr, and then making an extension speaker cabinet for the same. And then I decided the speaker may as well have an amplifier put into it, as I had one without a cabinet... So I ended up making a chassis... And then I figured it needed a badge, so with the help of Powerpoint, a bit of CAD software, some waterslide decal paper, and a can of acrylic lacquer, an acceptable artifact was created! And then I thought I would use a nice Paisley patttern for the faceplate, just because I could

Pics attached for the perusal of anyone who may be interested.

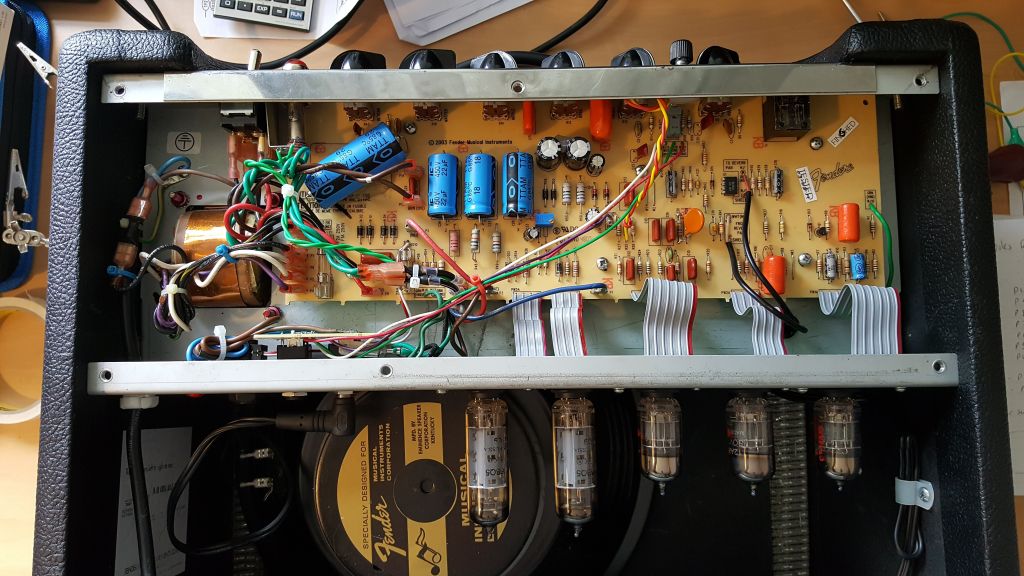

The Blues Jr had a tune-up to include the following:

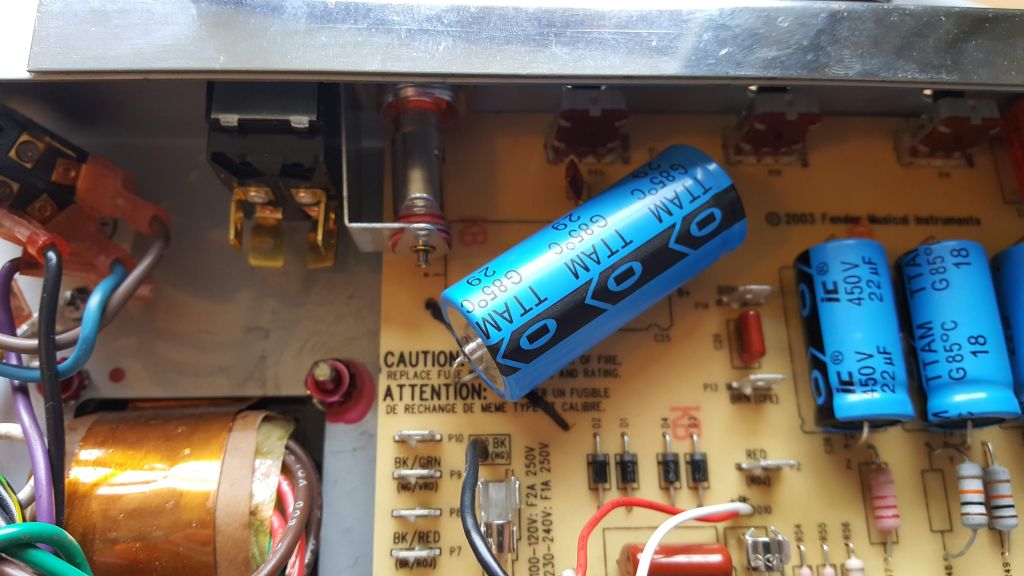

• Bigger power stiffening capacitor
• 'Blackface' tone control modification
• Tone capacitors upgraded to Sprague Orange Drops with increased capacitance
• Bias trimpot installed to get the valves running at a sensible temperature!
• Jewel light fitted - this was a massive pain in the a$$ and required the rotation of the main power capacitor, but well worth it as any Fender amp with a plastic LED just looks so wrong!
• Presence control fitted
• Small capacitor added on negative feedback circuit to prevent high frequency oscillation
• External speaker jack inserted into the undercarriage
• New valves

I have to say, it feels a lot more like a bigger amp now. Looking forward to being able to take it out and properly test it in a gig situation!

[Danny Mitchell]

That's some job, Sid
I doff my cap to your handiwork.

[simon_f3]

I have to confess I just followed various online guides. Look for 'Uncle Doug' on YouTube and you'll find the best ever tolex tutorial!

[Haddock]

Some serious shit going on there Sid. Respect!
Cheers
Calum

[hickenjr]

Nice!
