Hi to low impedance buffers.

[hickenjr]

I'm the proud owner of the blue one. It has definitely given me more bottom end growl and top end clarity, as well as a nice volume boost.
The thing that's great is that it doesn't need wires dangling everywhere like some boosters do. Straight into the jack you're away.

Bargain for 25 quid.

[SHAKEY]

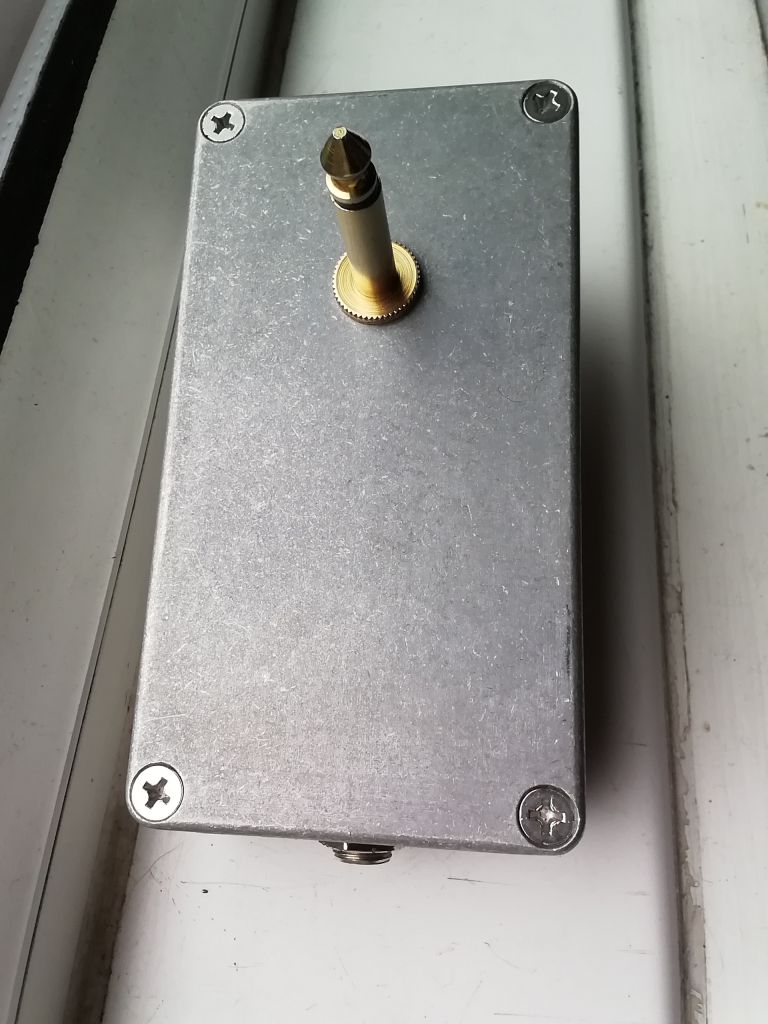

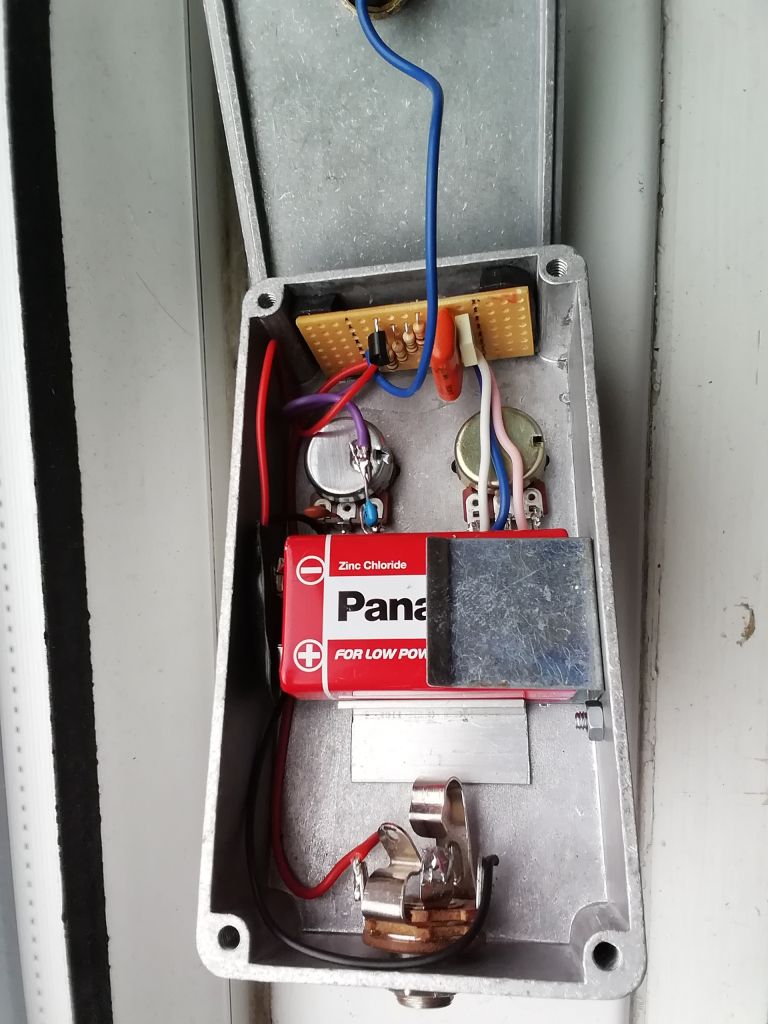

Dave, this is my version, very similar to yours with similar gain but with a Fender Grease Bucket tone circuit added, just a 500k lin pot and a 10 nan cap and a 22 nan cap. It's really handy having the tone at your finger tips. Just thought you might be interested. Cheers.

[dave hepworth]

Hi Shakey,
Many thanks for your reply and inclusion of your photos.It looks a great little unit and well made too.
I have a couple more buffers I made .The one on the right is made from a boiled sweet tin !!!
One has a toggle switch to turn on an extra cap.this gives a 6db boost in the higher frequencies.
The other has a 50 k pot wired as a variable resistor to give a variable tone cut/boost
Both are very effective in terms of buffering,boost and tone range.
The variiable one I have gig with and thro my Laney Lionheart 20 combo sounds super.
Regards Dave

[dave hepworth]

I must confess that pictures of my 2 units don't do them justice cosmetically.The light looks as though one is scratched and a dent in the other ...not the case lol !!
