WIRING A ZB SD10 PICKUP

[Jimmy Gibson]

I had to replace the three way switch on my ZB,i made a note of how the wires were soldered to the old switch, fitted the new switch,but strange because now only the first two coils are working,ie:the right and the centre positions,but not the third position.Anyone got a diagram of the ZB S10 STEEL?


Thanks.Jimmy. G

[bob adams]

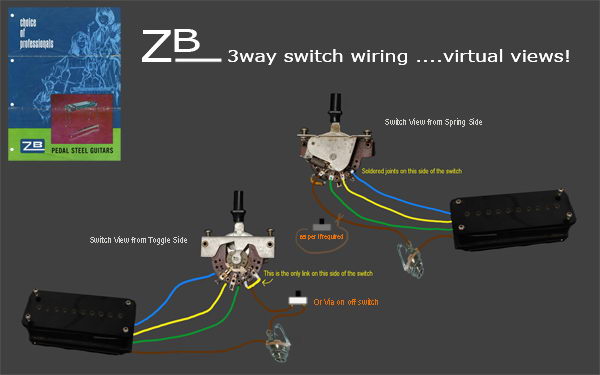

If you can't get it from this pic Jimmy pm me your email address and I'll send the bigger file!
